How Radio Frequency (RF) Works

Radio frequency (RF) refers to the range of electromagnetic waves used for wireless communication, from a few kilohertz (kHz) up to several gigahertz (GHz). RF enables wireless technologies such as radios, Wi‑Fi, cellular networks, Bluetooth, and many scientific and industrial systems. This article explains, in accessible terms, what RF is, how signals are created and guided, how they propagate, how they are modulated for information, and how engineers measure and troubleshoot RF systems.

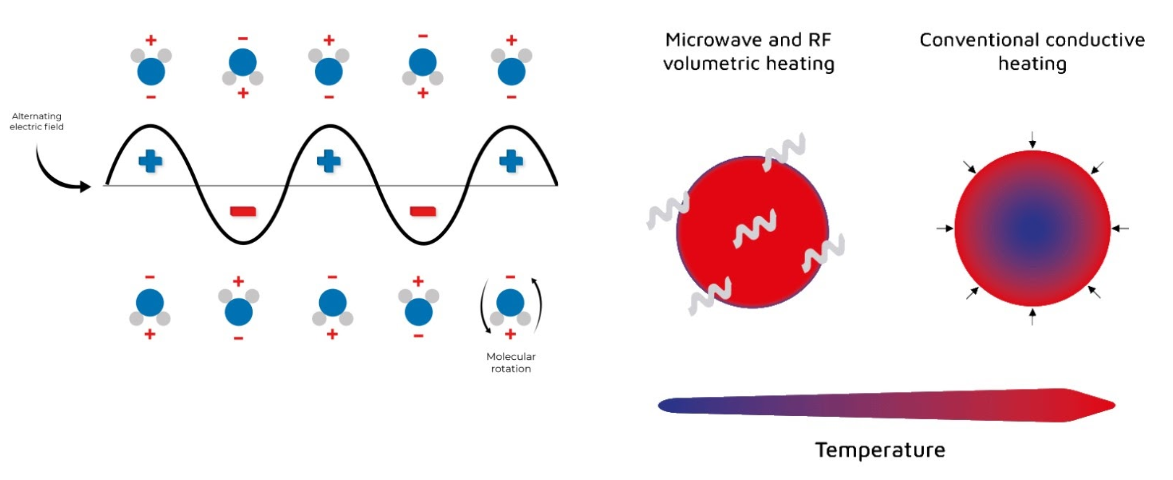

What is RF and why it matters

• RF is the portion of the electromagnetic spectrum used for wireless transmission. The “radio” in RF is about creating, transmitting, receiving, and processing signals that carry information without physical wires.
• A typical RF system includes a signal source (baseband or modulated data), a modulator, a transmitter (amplifier, upconverter, and filter), a medium for propagation (air or another dielectric), a receiving antenna, a receiver chain (downconverter, demodulator, and audio/data output), and sometimes a feedback loop for synchronization, control, or error correction.

Some key concepts you should know

• Frequency and wavelength: RF frequency determines the wavelength (λ = c/f, where c is the speed of light). Higher frequencies have shorter wavelengths and often allow more data in the same bandwidth, but they can be more susceptible to attenuation and obstacles.
• Amplitude, phase, and modulation: Information is encoded by changing one or more properties of the carrier wave. Common modulation schemes include amplitude (AM), frequency (FM), phase (PM), and combinations such as QAM (quadrature amplitude modulation), PSK (phase shift keying), and FSK (frequency shift keying).
• Bandwidth: The range of frequencies occupied by a signal. Wider bandwidth generally means higher data rates but also more spectrum usage and potential interference.
• Antennas: The bridge between RF energy in space and electrical signals in circuits. Antenna design (size, shape, and material) determines gain, directionality, polarization, and impedance matching.
• Impedance and matching: Most RF components are designed to work with a specific impedance (commonly 50 ohms). Mismatches cause reflections, standing waves, and power loss. Proper matching networks ensure maximum power transfer and minimize distortions.

How RF signals are generated and transmitted

• Signal source: A data signal (audio, video, digital data) is converted into a baseband representation.
• Modulation: The baseband signal modulates a carrier wave at RF. Modulation moves the data into the RF spectrum, making it possible to send it through the air.
• Upconversion and amplification: The modulated signal can be translated to a higher frequency (upconversion) and amplified to the desired transmit power. Filtering removes unwanted frequencies to meet spectral masks and regulatory limits.
• Transmission medium: In wireless, air is the medium. The RF field radiates from the antenna and propagates as an electromagnetic wave.
• Reception chain: The receiving antenna captures RF energy, which is then amplified, filtered, downconverted to an intermediate frequency or baseband, and demodulated to recover the original data.

How RF signals propagate through space

• Line-of-sight (LOS): Many RF systems rely on direct visibility between transmitter and receiver. Free-space path loss grows with distance and frequency.
• Reflection, diffraction, and scattering: Signals can bounce off objects, bend around obstacles, or scatter, affecting strength and phase.
• Ground waves and sky waves: At certain frequencies, signals travel along the ground or bounce off the ionosphere, enabling long-distance communication without satellites (typical for lower HF bands).
• Environmental factors: Buildings, weather, terrain, and vegetation affect propagation. Engineers model these effects to ensure reliable coverage and performance.
• Regulatory constraints: RF use is regulated to avoid harmful interference. Spectrum allocations, emission limits, and power levels shape how systems are designed and operated.

Antennas: the crucial interface

• Radiation and reception: Antennas convert electrical signals into RF waves (transmit) and RF waves back into electrical signals (receive).
• Parameters to consider:
• Gain: How much the antenna concentrates energy in a direction.
• Radiation pattern: The directional distribution of radiated power.
• Polarization: The orientation of the electric field; mismatches reduce received power.
• Impedance: Often 50 ohms; matching minimizes reflections.
• Size and bandwidth: Antennas are often a fraction of a wavelength in size; wider bandwidth antennas cover more frequencies but can be more complex.
• Practical note: In many systems, antennas are chosen or designed to meet coverage needs, physical constraints, and regulatory limits.

Measuring and characterizing RF systems

• Spectrum analyzers: Tools that visualize how much signal power exists across frequencies. They help identify interference, harmonic content, and bandwidth usage.
• Network/spectrum testing: References to return loss, standing wave ratio (SWR), and impedance matching report how well components are matched and how efficiently power is transferred.
• Modulation analysis: Oscilloscopes and specialized analyzers examine time-domain waveforms and modulation quality (e.g., constellation diagrams for QAM, eye diagrams for digital signals).
• Power measurements: Pout (transmitter output power), Psig or Pout vs. loading, and detector readings verify compliance with specifications.
• Regulatory compliance: RF tests verify emissions stay within permitted bands and power levels to prevent interference with other services.

A practical mental model: the RF “passive-to-active” loop

• Passive domain: Antennas, transmission lines, filters, and impedance networks shape how energy flows and how clean the signal remains before it’s transmitted or after it’s received.
• Active domain: Amplifiers, mixers, converters, and modulators inject energy and information into the RF chain and extract it at the end.
• The loop must balance gain, noise, linearity, and efficiency. Too much gain can saturate the system; too little gain can’t overcome losses or reach the required signal quality. Noise figures and linearity determine how faithfully information is preserved.

Why RF design is an interdisciplinary craft

• Electrical engineering: Circuit design, impedance matching, noise figures, linearity, and signal processing.
• Physics: Understanding EM wave propagation, polarization, and material interactions.
• Mechanical/thermal design: Heat management and vibration considerations in transmitters and antennas.
• Regulatory/compliance: Understanding spectrum allocations, safe operation, and certification processes.
• System engineering: Balancing coverage, capacity, cost, and power consumption.

A few common RF technologies to know

• Wireless communications: Cellular networks (2G/3G/4G/5G), Wi‑Fi (IEEE 802.11), Bluetooth, Zigbee.
• Radar and sensing: RF energy transmitted and reflected signals used for ranging and imaging.
• RF test equipment: Spectrum analyzers, signal generators, network analyzers, and power meters used to design, verify, and troubleshoot RF systems.
